Magic Cube

Name: Magic Cube
Brand: Skyworth Energy Storage
SKU: magic-cube

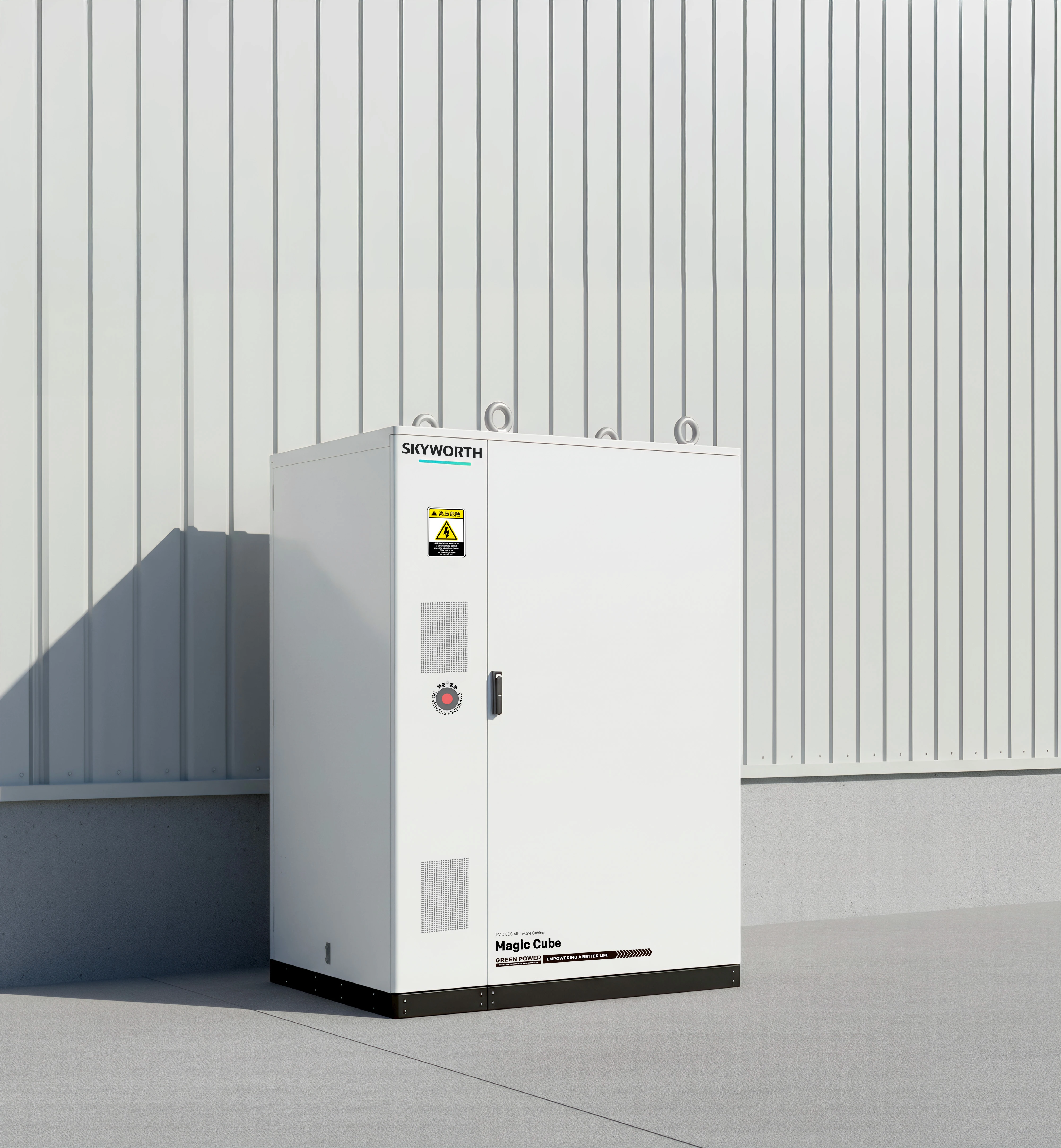

Magic Cube

A 60kW/128–225kWh PV-plus-storage all-in-one cabinet featuring a DC-coupled high-efficiency architecture. With seamless on/off-grid switching under 10ms and AI-driven EMS management, it delivers optimized performance for commercial solar and storage applications.

Key Features

DC-coupled architecture, PV direct connection reduces conversion loss
No extra PV inverter needed, simplified installation
Seamless on/off-grid automatic switching <10ms
Multi-unit parallel, diesel generator integration supported
128kWh~225kWh flexible capacity configuration
314Ah large capacity cell compatible
AI intelligent EMS, predictive optimization scheduling
Cloud monitoring, remote OTA O&M
All operation modes: off-grid/backup/peak shaving/self-consumption

Downloads

Product Brochure (PDF)User Manual (PDF)Certificate (PDF)

Specifications

Rated Power	60kW
Maximum Power	66kW
System Capacity	128kWh ~ 225kWh
Output Current	91.2A
Grid Voltage	230V/400V Three-phase four-wire
System Efficiency	87%
Max PV Input Power	108kW
Max PV Voltage	1000V
MPPT Quantity	4 channels
MPPT Voltage Range	150V-900V
DOD	95%
Cooling Method	Smart AC + Fan
Cooling/Heating Power	1.5kW / 2kW
Protection Rating	IP55
Fire Suppression	Aerosol fire extinguishing system
Standby Power	600W
Noise Level	<65dB
Dimensions	1520×1230×2100mm
Weight	<2.2 tons

Application Scenarios

PV self-consumption maximization

Commercial and industrial solar+storage projects

Remote area off-grid power supply

Enterprise electricity cost optimization

Carbon neutral factory initiatives

Technical Highlights

DC-coupled direct architecture for higher efficiency

AI weather + load forecasting algorithm

Dynamic load intelligent management

Zero export power control capability
