Max LV IP20

Name: Max LV IP20
Brand: Skyworth Energy Storage
SKU: max-lv-ip20

Max LV IP20

A 51.2V low-voltage energy storage system designed for three-phase residential installations, delivering 16.076kWh of capacity. With IP20 indoor protection and natural cooling, it offers efficient, long-life performance for home energy management.

Key Features

380V three-phase inverter integration
16.076kWh large capacity
IP20 indoor installation design
Natural cooling, high efficiency and long life
Comprehensive electrical protection: lightning/OV/OC/leakage/ESD
APP & Web real-time monitoring
OTA firmware upgrade capability
Building-block installation, easy maintenance
8 units parallel max 128kWh capacity

Downloads

Product Brochure (PDF)User Manual (PDF)Certificate (PDF)

Specifications

Battery Type	LFP-3.2V-314Ah
Rated Capacity	16.076kWh
Usable Capacity	15.27kWh (DOD 95%)
Rated Voltage	51.2V
Operating Voltage	40V~58.4V
Rated Charge/Discharge Current	150A / 150A
Max Charge/Discharge Current	170A
Balancing Method	Passive balancing
Cycle Life	≥8000 cycles @25°C 0.5C
EOL Capacity	70%
Communication	WiFi, RS485/CAN
Operating Temperature	Charge 0~55°C / Discharge -20~60°C
Cooling Method	Natural cooling
Protection Rating	IP20 (Indoor)
Parallel Support	≤8 units, max 128kWh
Weight	~125kg
Dimensions	610×270×833mm
Certifications	UN38.3, MSDS, IEC62619, EMC
Warranty	5 years (10 years optional)

Application Scenarios

Large villa residential storage

Home energy management systems

Home backup power systems

Three-phase power households

Garage/basement installations

Technical Highlights

Three-phase balanced output technology

High efficiency bidirectional inverter

Smart home ecosystem ready

APP visual monitoring and control

Back to All Products

Related Products

Max LV IP65

A 51.2V low-voltage energy storage system for three-phase residential use, offering 16.076kWh of capacity with IP65 outdoor protection. Combining natural cooling with active heating, it ensures all-weather reliability from -30°C to 60°C.

Learn More

LV2.0 (EBricks)

A single-phase 220V hybrid all-in-one energy storage system delivering 5kW of power and 5–15kWh of flexible capacity. With an ultra-silent, furniture-grade aesthetic, it integrates seamlessly into modern home interiors.

Learn More

LV2.1 (Stackable LV)

A single-phase stackable low-voltage energy storage system offering 5kW/6kW of power and 10–20kWh of capacity. Engineered with a safe low-voltage architecture and system efficiency of 92% or higher, it supports flexible residential expansion.

Learn More

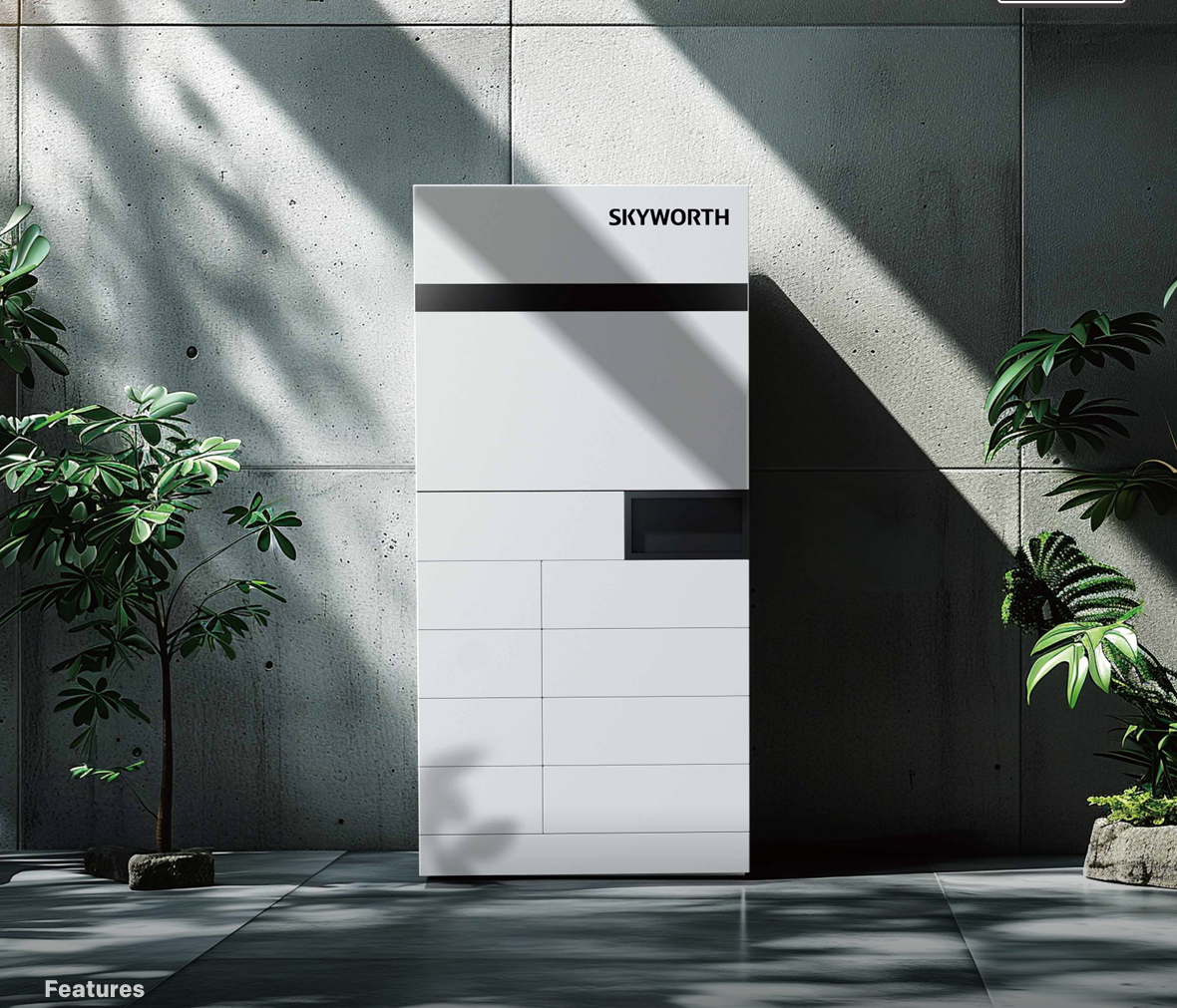

HV1.0 (EBlocks)
