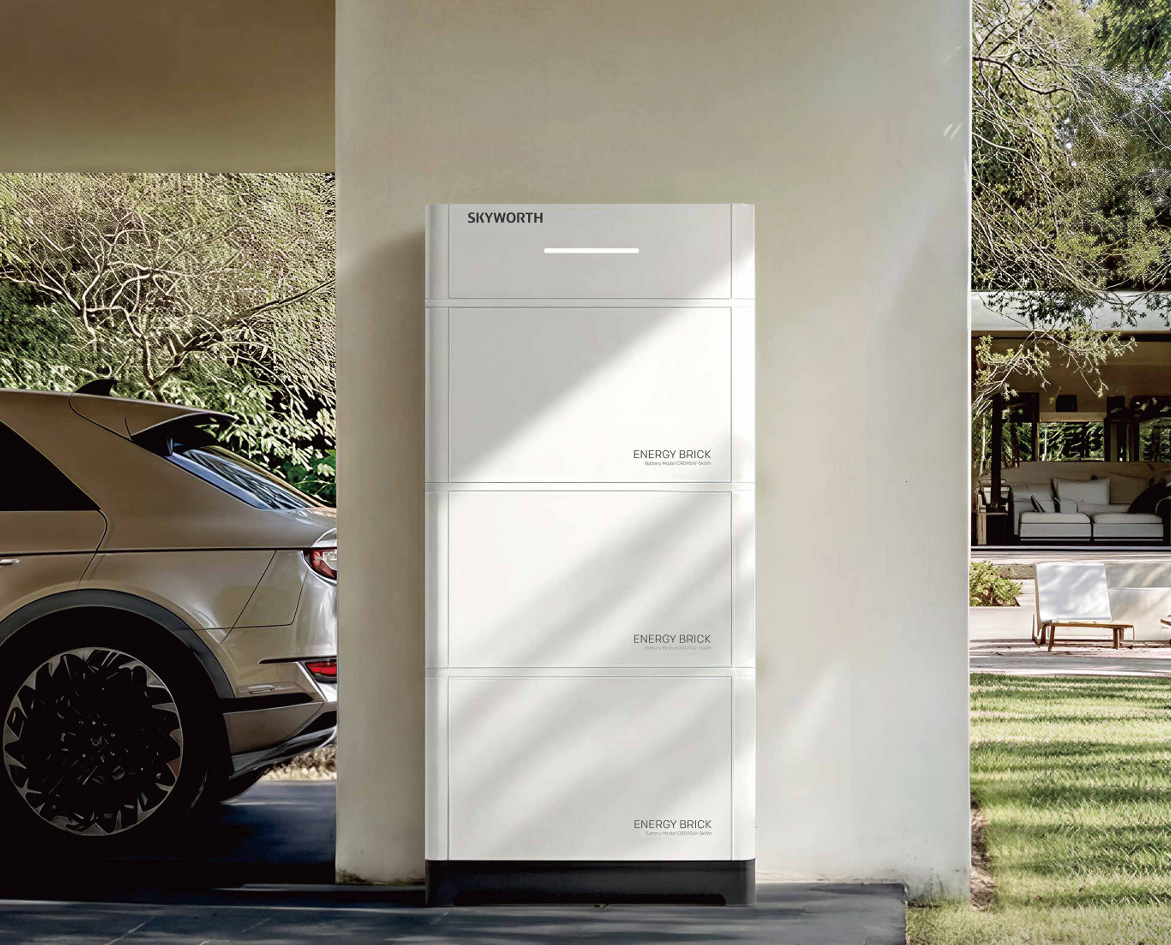

LV2.1 (Stackable LV)

Name: LV2.1 (Stackable LV)
Brand: Skyworth Energy Storage
SKU: lv2-1

LV2.1 (Stackable LV)

A single-phase stackable low-voltage energy storage system offering 5kW/6kW of power and 10–20kWh of capacity. Engineered with a safe low-voltage architecture and system efficiency of 92% or higher, it supports flexible residential expansion.

Key Features

System efficiency ≥92%
Up to 100A/120A continuous charge/discharge
Low voltage system safety architecture
10~20kWh flexible capacity configuration
Comprehensive safety protection features
Building-block stack installation
Reliable and easy maintenance

Downloads

Product Brochure (PDF)User Manual (PDF)Certificate (PDF)

Specifications

Battery Type	LFP
Module Capacity	5.12kWh
Rated Power	5000W
Operating Voltage	40V-58.4V
Max Charge/Discharge Current	100A / 120A
Max Charge/Discharge Power	5kW / 6kW
System Efficiency	≥92%
Protection Rating	IP65
Operating Temperature	-10°C~50°C (derate >45°C)
Module Quantity	2~4 units
Capacity Range	10.24kWh ~ 20.48kWh
Communication	CAN/RS485
Certifications	IEC62619, IEC60730, RoHS
Module Dimensions	730×478×165mm
Module Weight	48kg
Warranty	5 years (10 years optional)

Application Scenarios

Tech-savvy homeowner installations

Smart home system integration

Energy optimization enthusiasts

App-controlled household preference

Future-proof expandable installations

Technical Highlights

Machine learning optimization algorithm

Usage pattern recognition technology

Weather forecast integrated charging

Tariff-aware intelligent charge/discharge

Back to All Products

Related Products

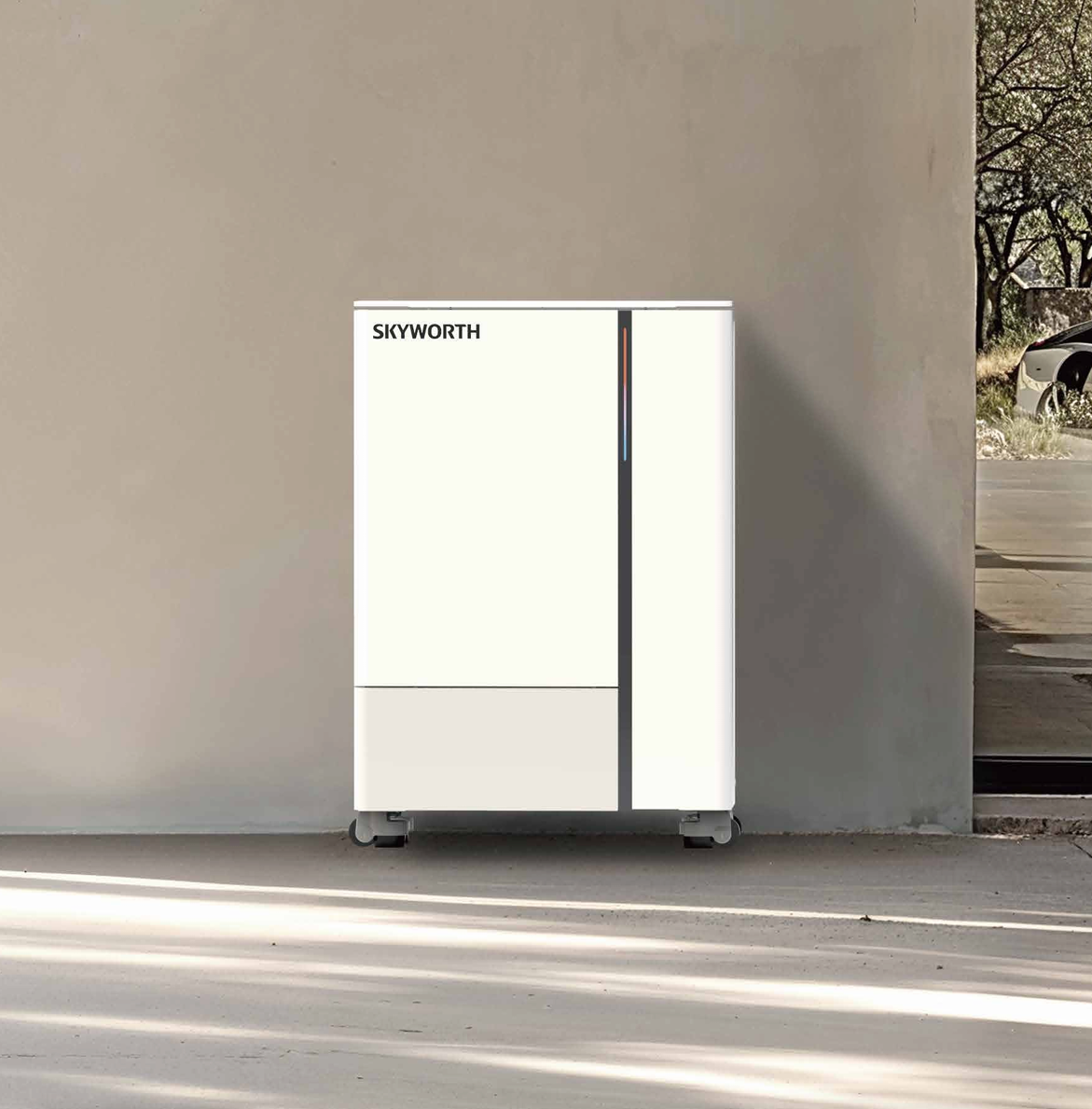

Max LV IP20

A 51.2V low-voltage energy storage system designed for three-phase residential installations, delivering 16.076kWh of capacity. With IP20 indoor protection and natural cooling, it offers efficient, long-life performance for home energy management.

Learn More

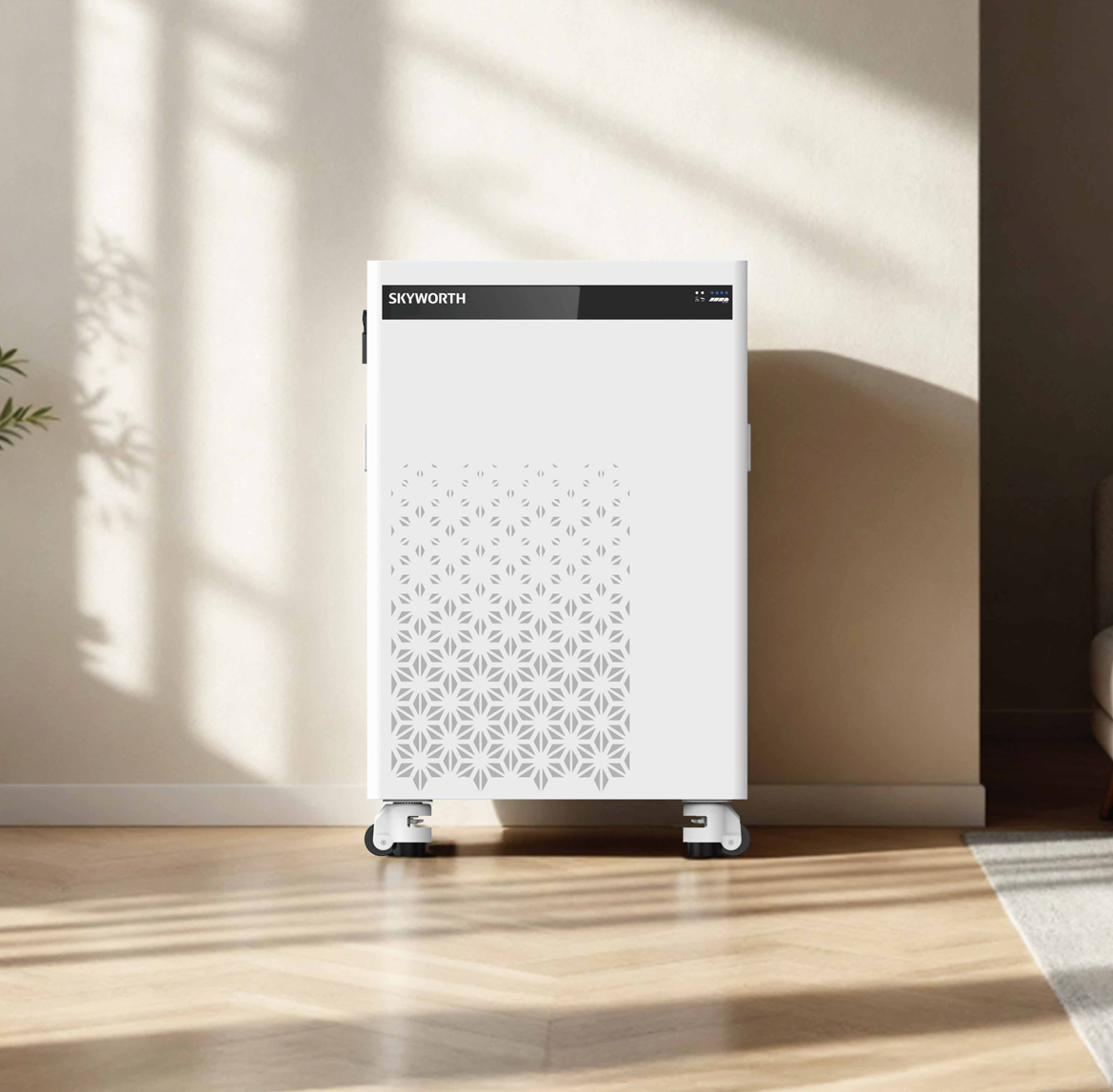

Max LV IP65

A 51.2V low-voltage energy storage system for three-phase residential use, offering 16.076kWh of capacity with IP65 outdoor protection. Combining natural cooling with active heating, it ensures all-weather reliability from -30°C to 60°C.

Learn More

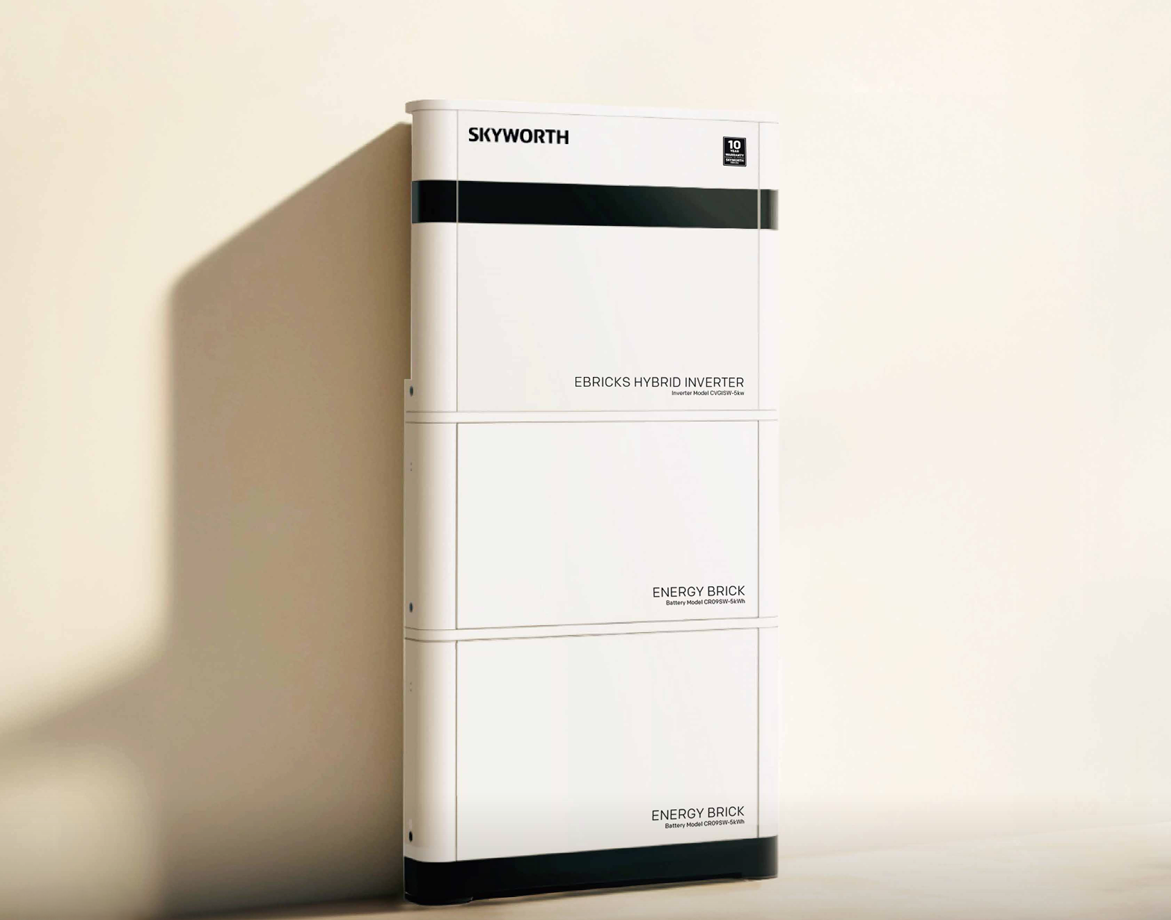

LV2.0 (EBricks)

A single-phase 220V hybrid all-in-one energy storage system delivering 5kW of power and 5–15kWh of flexible capacity. With an ultra-silent, furniture-grade aesthetic, it integrates seamlessly into modern home interiors.

Learn More

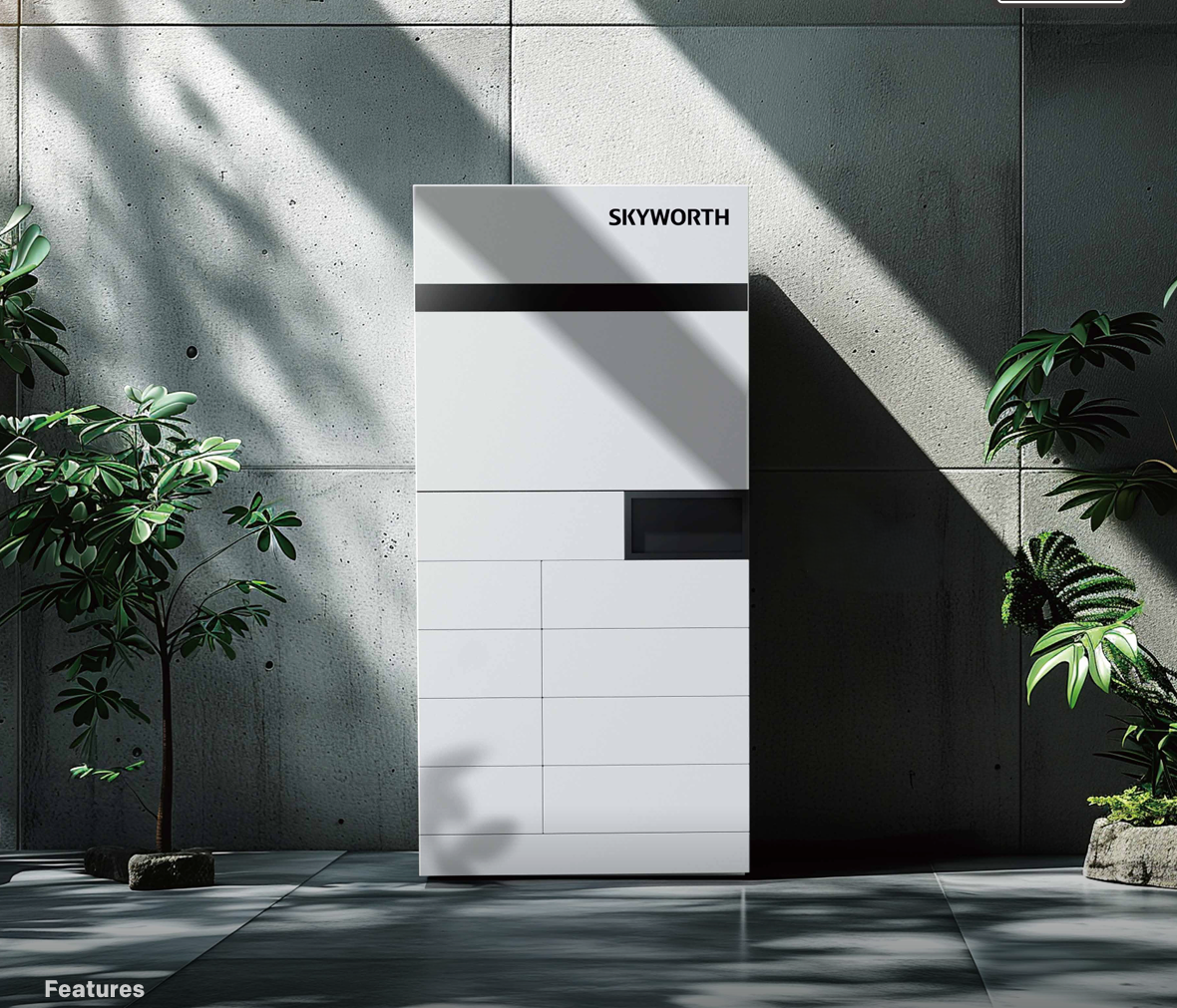

HV1.0 (EBlocks)
