G10 Balcony Storage

Name: G10 Balcony Storage
Brand: Skyworth Energy Storage
SKU: g10-balcony

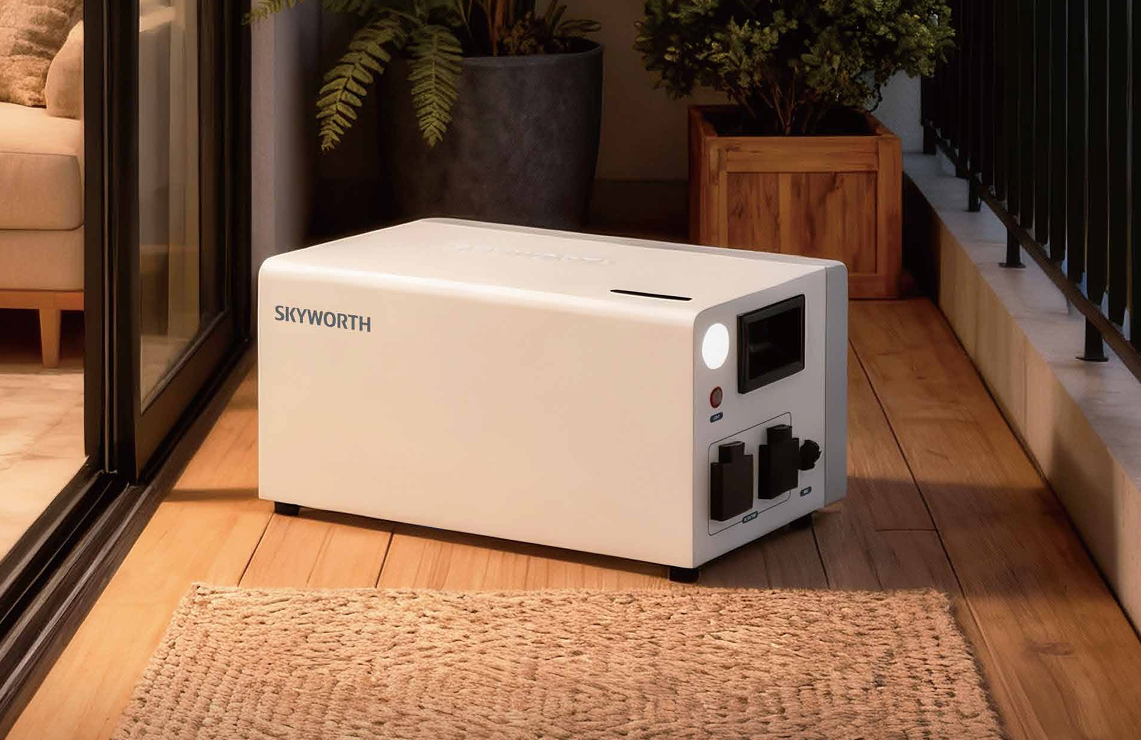

G10 Balcony Storage

A 2.5kWh balcony PV storage all-in-one system designed for apartment living. With plug-and-play zero-wiring installation and operation below 30dB, it enables effortless residential solar self-consumption in any home.

Key Features

Balcony dedicated, plug-and-play design
≤30dB ultra-silent, fanless design
Apartment friendly, no professional installation needed
LFP battery cells, safe and long life
2-channel MPPT PV input
On/off-grid intelligent switching
APP monitoring and management support
IP65 protection rating

Downloads

Product Brochure (PDF)User Manual (PDF)Certificate (PDF)

Specifications

PV MPPT Channels	2 channels
PV Voltage Range	20V-60V DC
PV Max Input Current	2×15A
Max PV Power Per String	700W
Charging Power	1200W
AC Discharge Capacity	3600VA Pure Sine Wave
EPS Switching Time	20ms
No-load Loss	≤18W
PV→BAT Efficiency	≥94%
PV→GRID Efficiency	≥97%
Battery Capacity	2500Wh
DOD	95%
Battery Type	LFP Lithium Iron Phosphate
Cell Capacity	52Ah
Operating Voltage Range	37.5V-54.75V
Cycle Life	>6000 cycles
BMS Max Continuous Discharge	35A
BMS Balancing Current	>100mA passive balancing
Protection Rating	IP65
Operating Temperature	-20°C~55°C
Operating Altitude	≤3000m
Noise Level	≤30dB (Fanless)
Design Life	>12 years
Weight	≤37kg

Application Scenarios

Apartment balcony PV self-consumption

Urban terrace PV installations

Rental property renter installations

Small residential PV systems

Condo apartment energy management

Technical Highlights

Renter-friendly zero-modification design

Micro-inverter integration technology

Building structure zero-impact requirement

Detachable and relocatable modular design

Back to All Products

Related Products

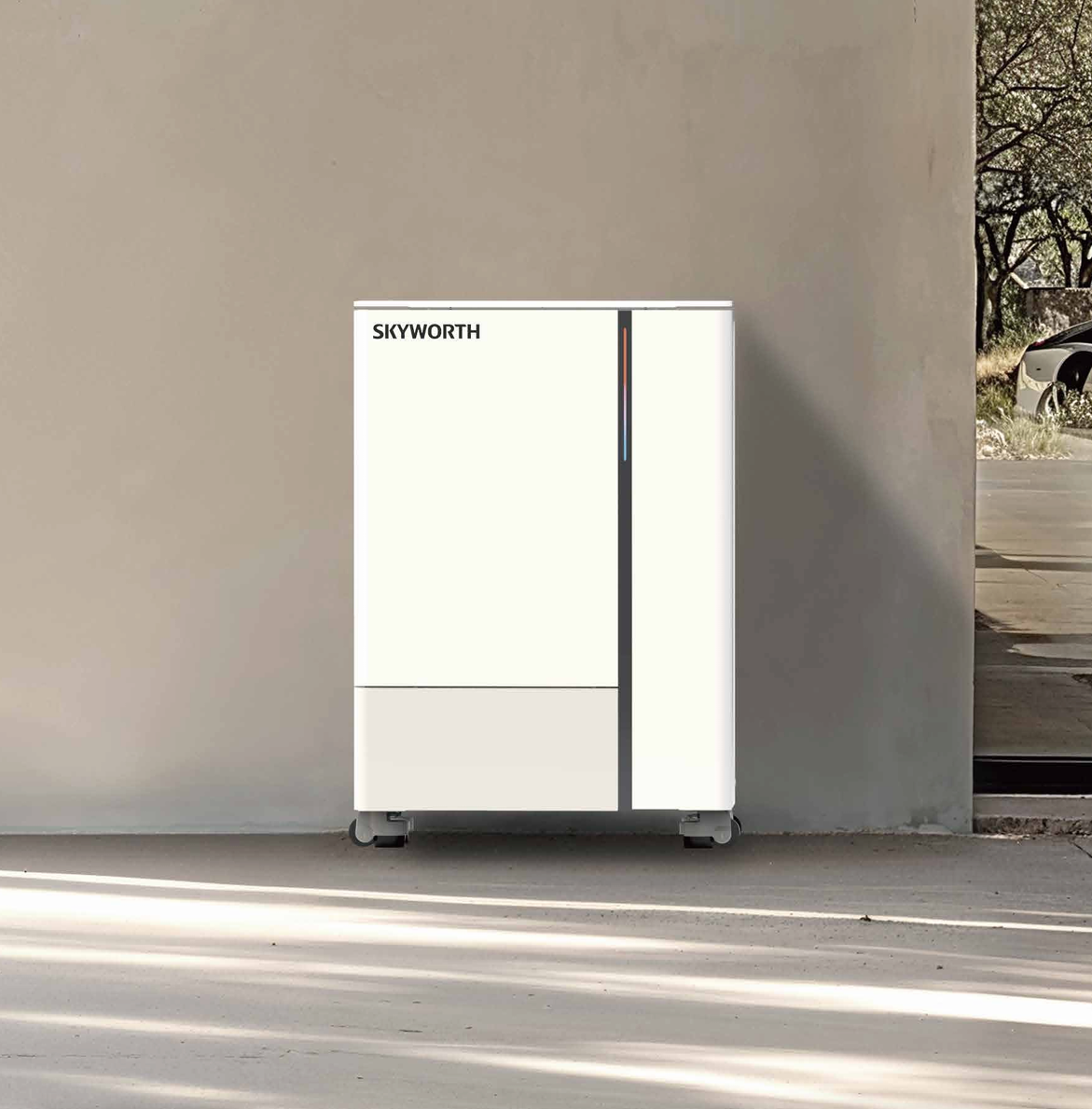

Max LV IP20

A 51.2V low-voltage energy storage system designed for three-phase residential installations, delivering 16.076kWh of capacity. With IP20 indoor protection and natural cooling, it offers efficient, long-life performance for home energy management.

Learn More

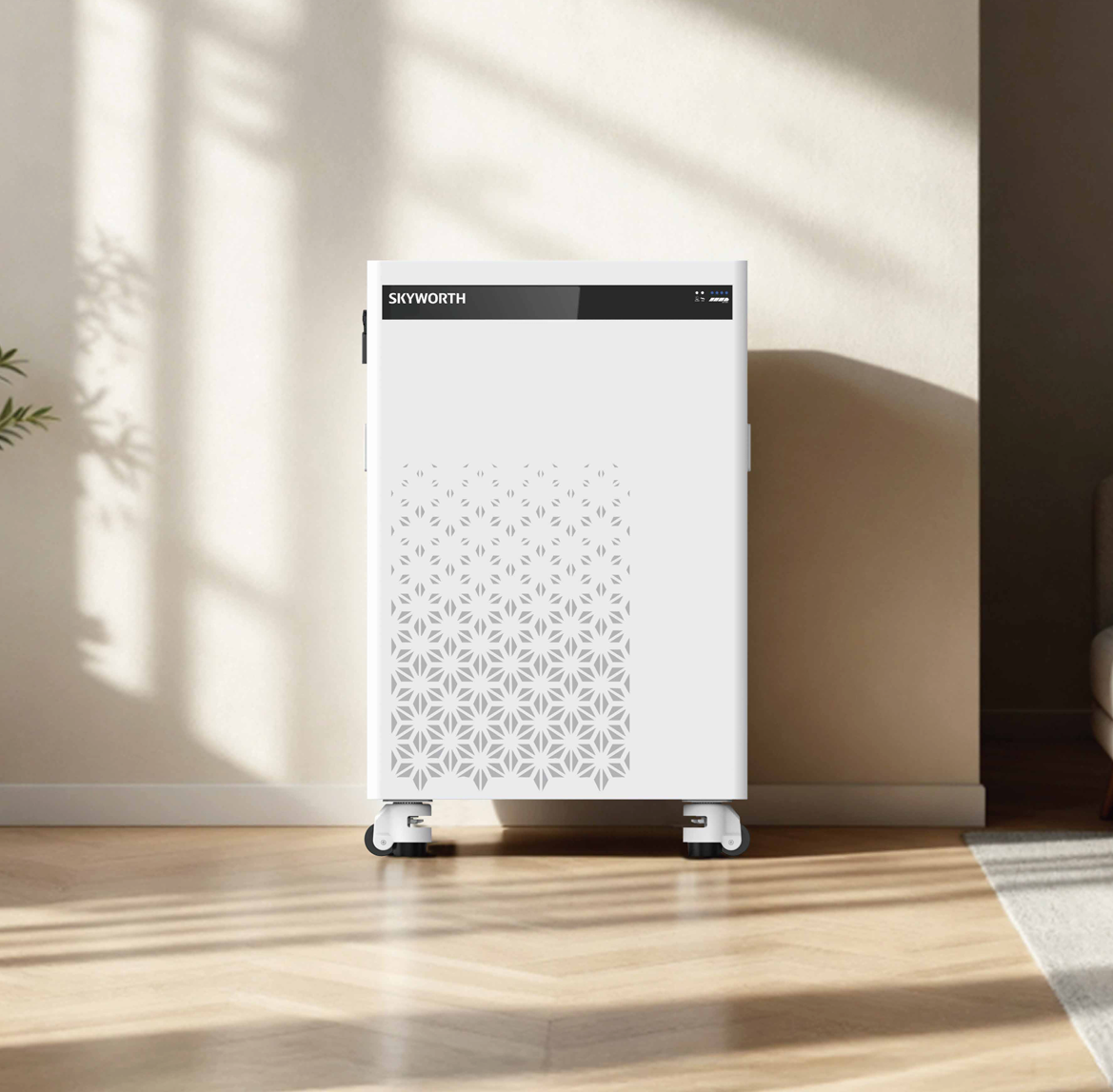

Max LV IP65

A 51.2V low-voltage energy storage system for three-phase residential use, offering 16.076kWh of capacity with IP65 outdoor protection. Combining natural cooling with active heating, it ensures all-weather reliability from -30°C to 60°C.

Learn More

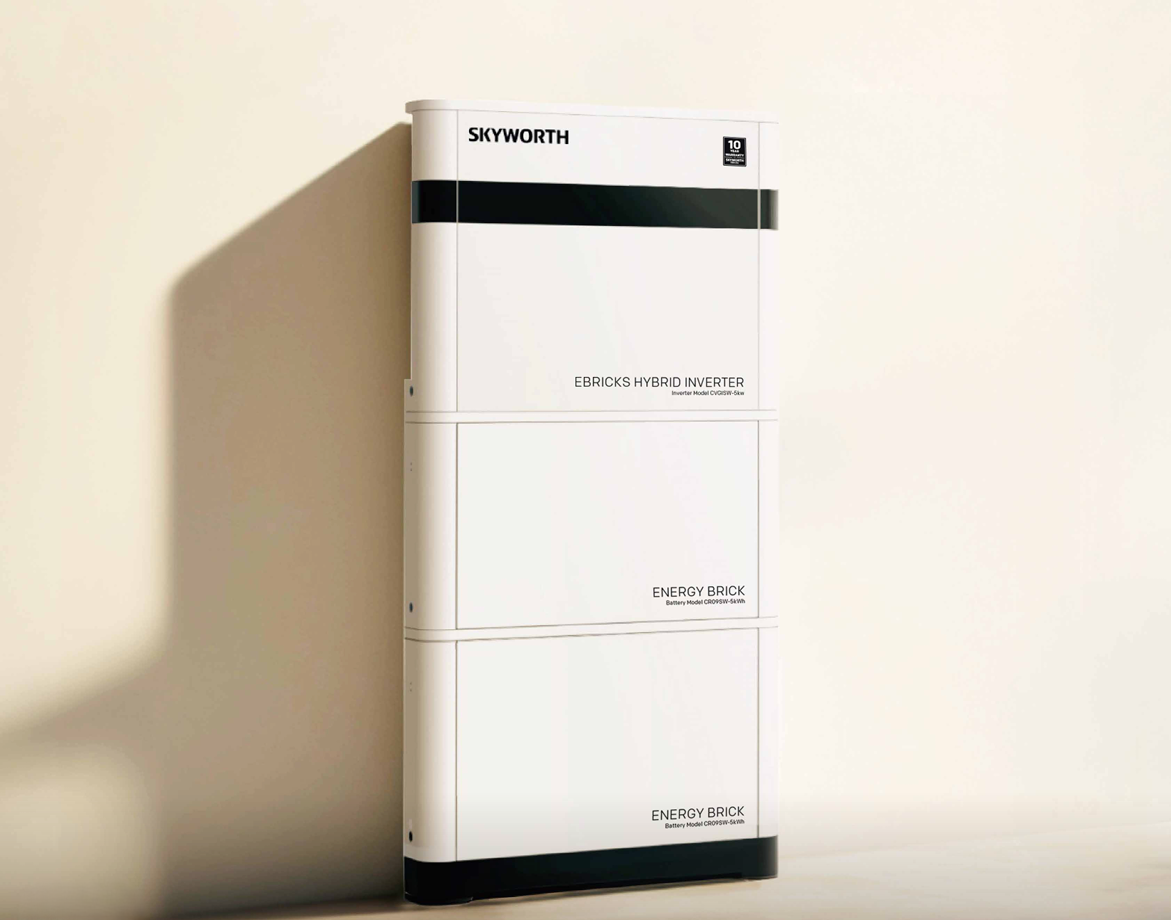

LV2.0 (EBricks)

A single-phase 220V hybrid all-in-one energy storage system delivering 5kW of power and 5–15kWh of flexible capacity. With an ultra-silent, furniture-grade aesthetic, it integrates seamlessly into modern home interiors.

Learn More

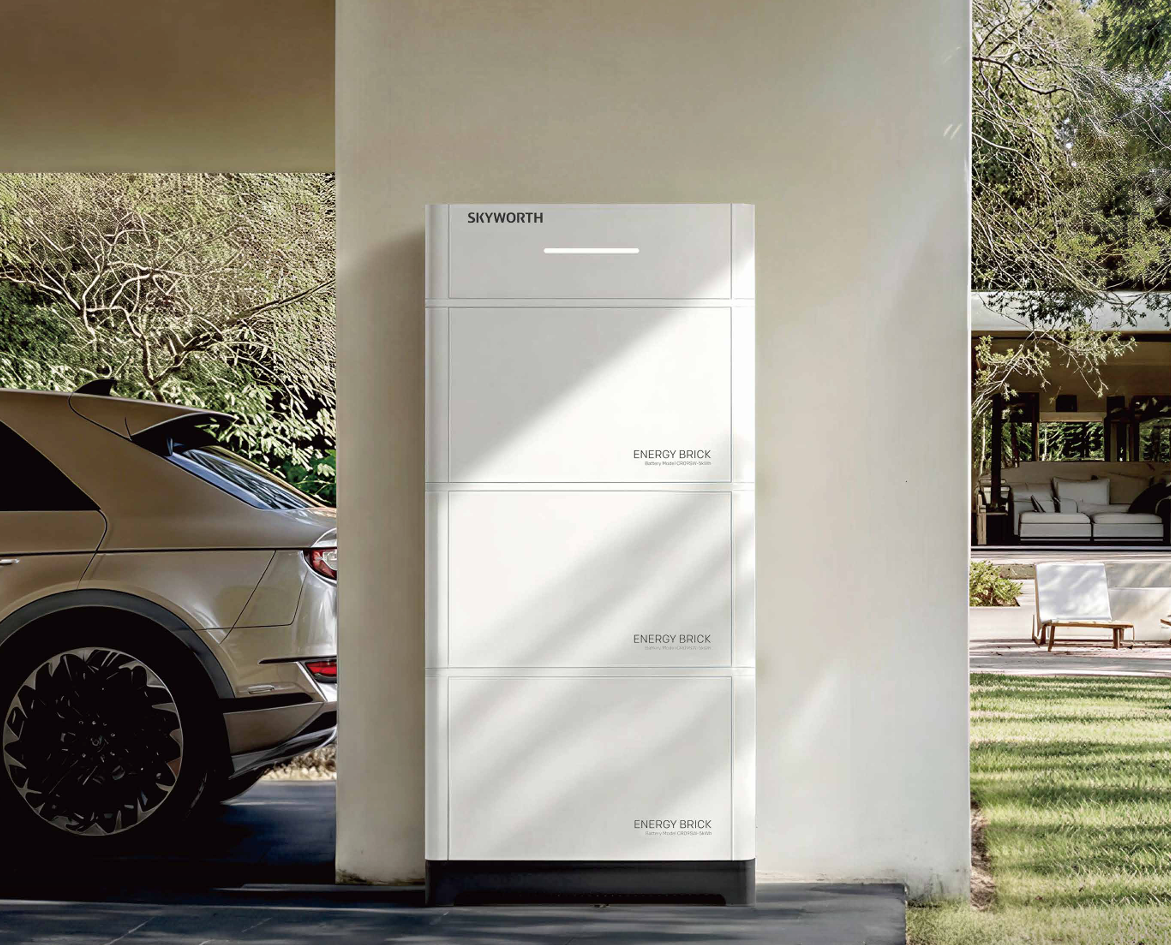

LV2.1 (Stackable LV)
