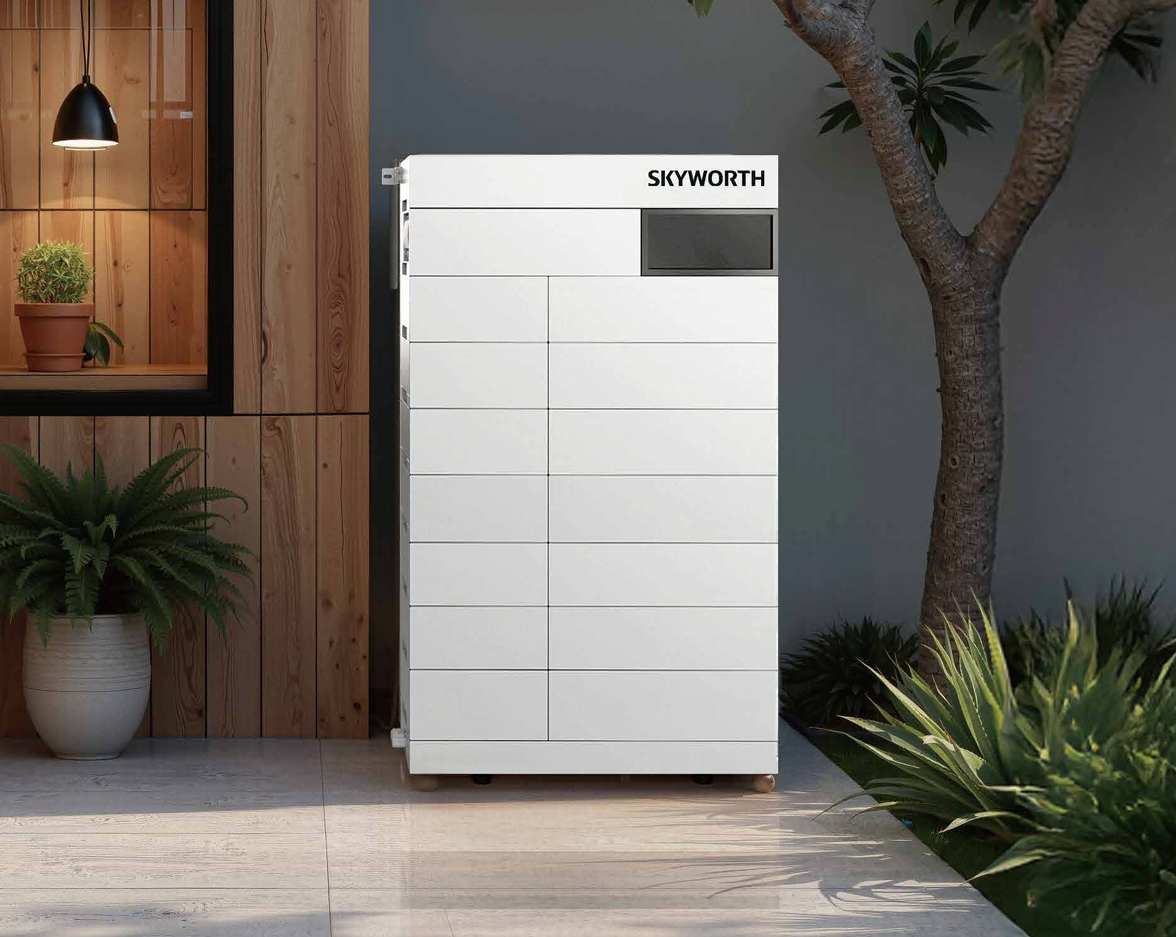

HV1.1 (Alfred)

Name: HV1.1 (Alfred)
Brand: Skyworth Energy Storage
SKU: hv1-1

HV1.1 (Alfred)

A stackable high-voltage energy storage system offering 9.6–33.6kWh of capacity with 92% efficiency and a 10-year warranty. Recognized with the Red Dot Design Award, it delivers over 10,000 cycles of premium residential performance.

Key Features

10-year extended warranty commitment
Modular wireless design for simplest installation
Flexible capacity configuration 4~14 modules
50A continuous charge/discharge capability
High voltage system, efficiency up to 92%
>10000 cycles ultra-long lifespan
IP65 outdoor installation friendly
Red Dot Design Award, home decor aesthetics
Built-in fire suppression module, safety upgraded

Downloads

Product Brochure (PDF)User Manual (PDF)Certificate (PDF)

Specifications

Battery Module Model	CR10ST-2400Wh
Battery Type	LFP Lithium Iron Phosphate
Module Capacity	2.4kWh, 50Ah
Module Voltage Range	43.5V-54.75V
Max Charge/Discharge Current	50A / 50A
Module Power	2.4kW / 2.4kW
Module Dimensions	780×140×240mm
Module Weight	25kg
Module Quantity	4~14 units
System Capacity Range	9.6kWh ~ 33.6kWh
System Efficiency	92%
Communication	RS485 / CAN
Cooling Method	Natural cooling
Protection Rating	IP65
Operating Temperature	-10°C~50°C (derate >45°C)
Cycle Life	>10000 cycles @0.2C, EOL>65%
Operating Altitude	≤4000m
Certifications	UN38.3, IEC62619, VDE-2150
Warranty	10 years

Application Scenarios

Premium residential storage first choice

Long-term investment value orientation

High availability requirement scenarios

System upgrade and replacement needs

New construction pre-installed projects

Technical Highlights

Fifth generation BMS management technology

Cell-level active balancing control

Health status predictive monitoring

Extended life chemistry formulation
