Foldable Solar Panel

Name: Foldable Solar Panel
Brand: Skyworth Energy Storage
SKU: foldable-solar-panel

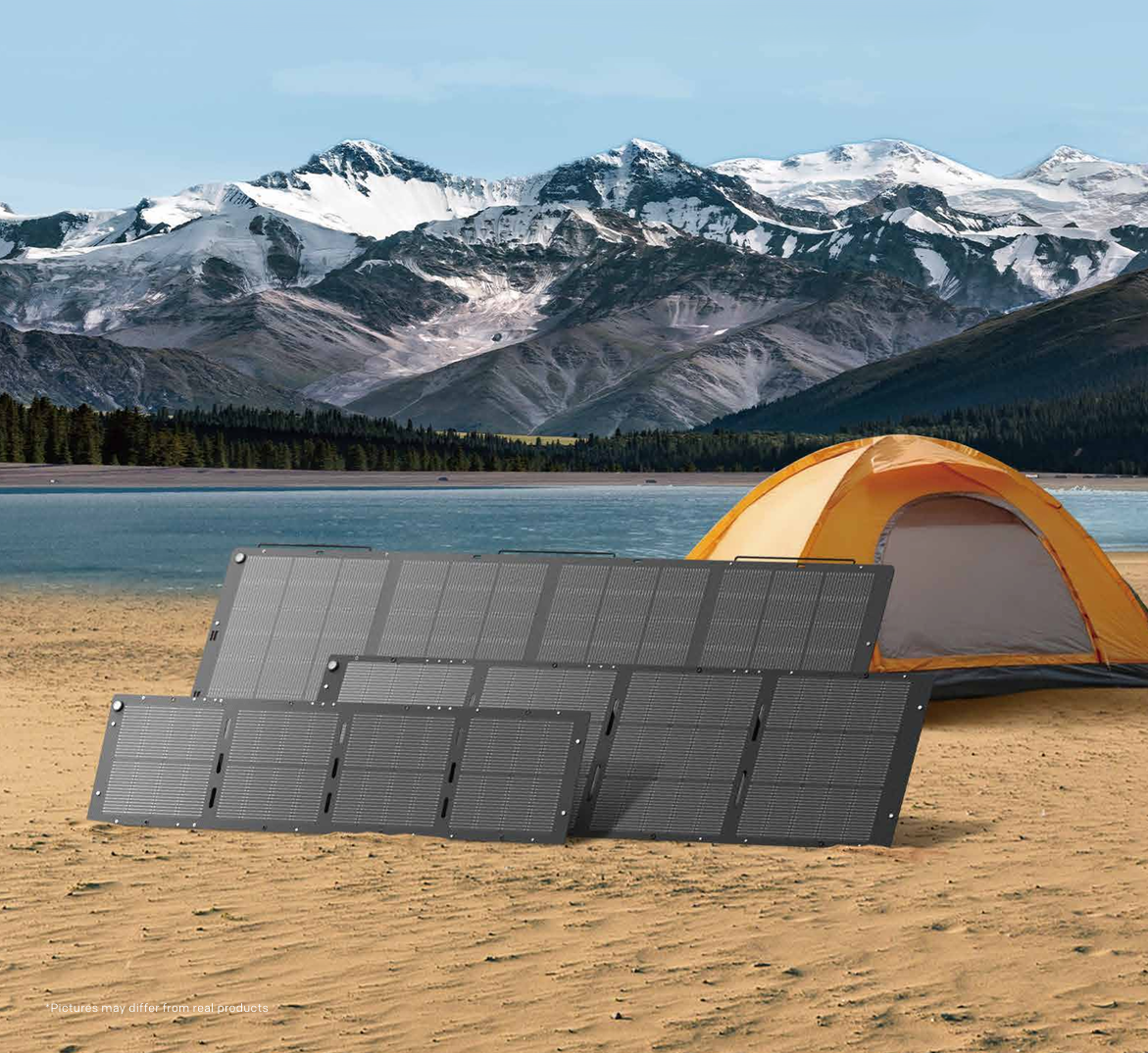

Foldable Solar Panel

A portable foldable solar panel series available in 110W, 220W, and 400W capacities. Built with TOPcon monocrystalline silicon cells delivering up to 25% conversion efficiency, IP68 waterproof protection, and a 3-angle sun tracker, it enables fast, reliable off-grid charging for portable power stations and outdoor adventures.

Key Features

110W / 220W / 400W capacity options
≈25% photoelectric conversion efficiency with TOPcon monocrystalline silicon cells
IP68 waterproof, storm and dust proof
3-angle sun tracker: 55°, 45°, 35° for optimized sunlight capture
3-second quick setup with built-in tool kit
Multi-panel linking for speed boost charging
MC4 to XT60 adapter, compatible with most portable power stations
4× compact folding design with Oxford fabric and leather handles

Downloads

Product Brochure (PDF)User Manual (PDF)Certificate (PDF)

Specifications

Cell Type	TOPcon monocrystalline silicon
Conversion Efficiency	≈25%
Protection Rating	IP68
110W Unfolded Dimensions	1772±5 × 430±2 × 2.3±0.5 mm
110W Folded Dimensions	455±5 × 430±2 × 35±5 mm
110W Max Power	110W
110W Open Circuit Voltage	21V
110W Operating Current	6.0A
110W Short Circuit Current	6.3A
110W Net Weight	3.3±0.4 kg
220W Unfolded Dimensions	2106±5 × 602±3 × 2.3±0.5 mm
220W Folded Dimensions	605±5 × 523±3 × 40±5 mm
220W Folding Quantity	4 folds
220W Max Power	220W
220W Open Circuit Voltage	22.4V
220W Operating Current	8.1A
220W Short Circuit Current	8.5A
220W Net Weight	5.2±0.5 kg
400W Unfolded Dimensions	2463±5 × 928±3 × 3.2±0.5 mm
400W Folded Dimensions	928±5 × 630±3 × 29±5 mm
400W Max Power	400W
400W Open Circuit Voltage	58.8V
400W Operating Current	12.2A
400W Short Circuit Current	12.8A
400W Net Weight	7.4±0.5 kg
Warranty	12 months

Application Scenarios

Portable power station solar charging

Outdoor camping and RV trips

Emergency backup power supply

Off-grid outdoor work sites

Travel and expedition power needs

Technical Highlights

Advanced TOPcon monocrystalline cell technology

3-angle adjustable stand for maximum solar capture

IP68-rated waterproof and dustproof construction

Plug-and-play MC4 to XT60 connectivity

Compact foldable design with premium materials

Back to All Products

Related Products

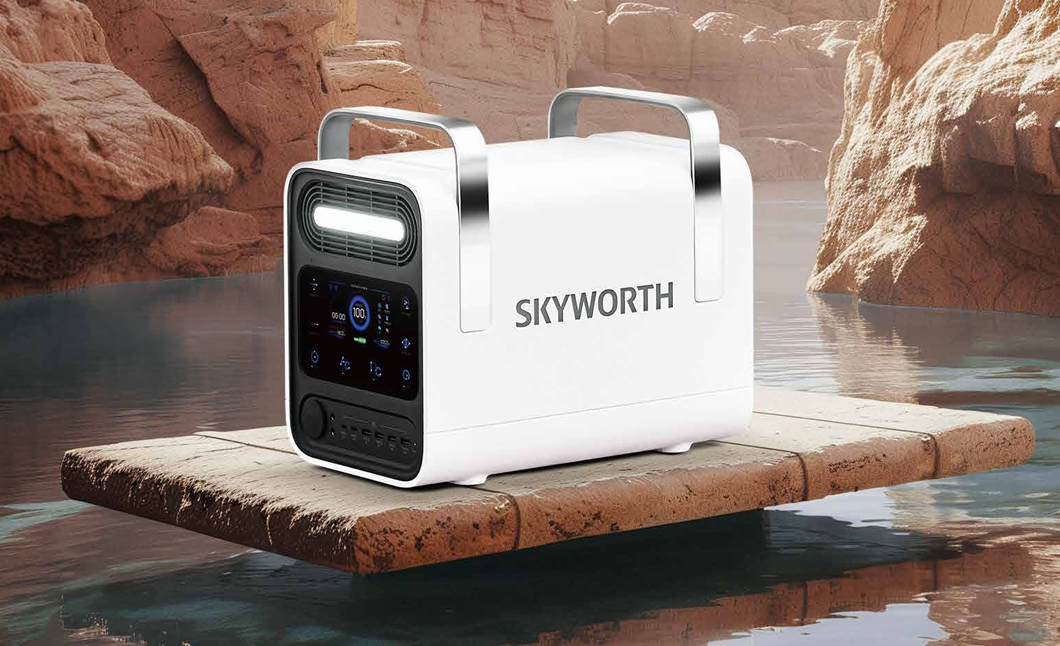

Portable Power Station Pro Series

A high-performance portable power station series available in 512Wh, 1024Wh, and 2048Wh capacities. Powered by LFP cells with 20ms EPS switching, APP control, and a TFT display, it delivers premium smart features for professional outdoor and emergency power needs.

Learn More

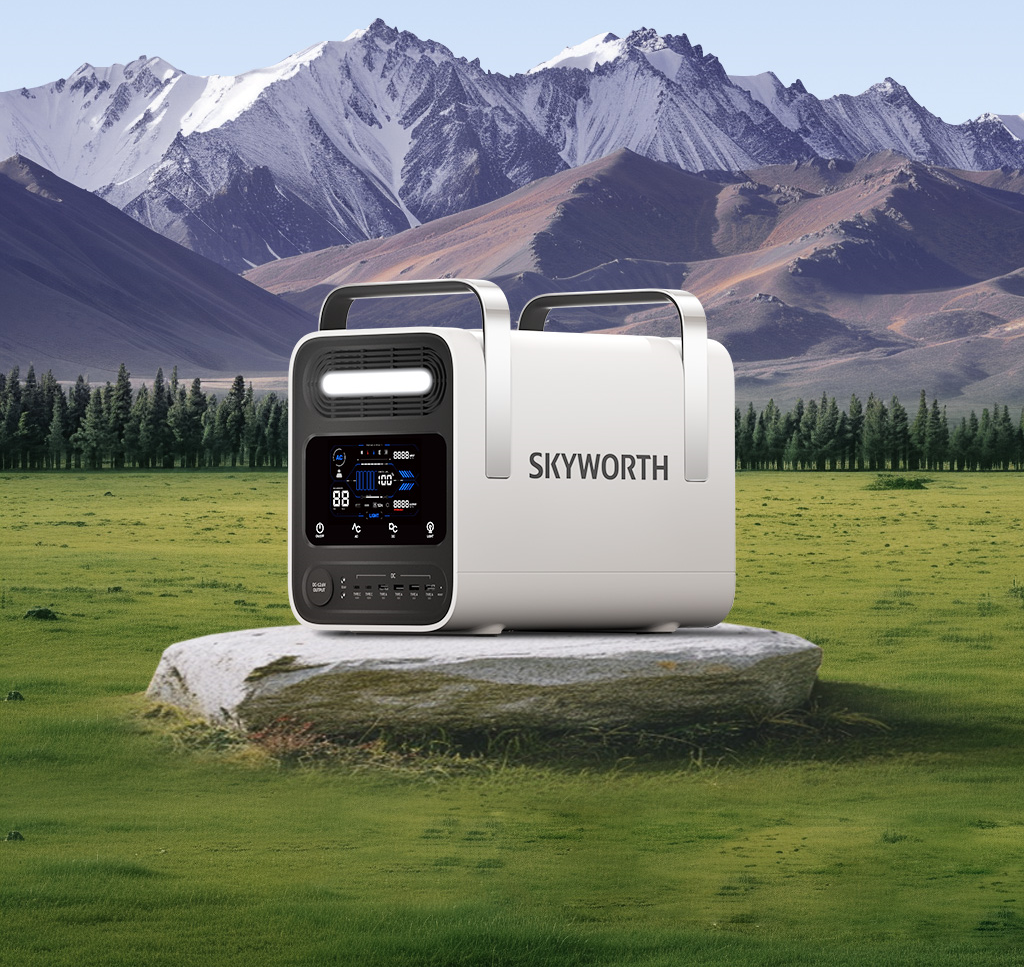

Portable Power Station Basic Series

A value-optimized portable power station series offering 512Wh, 1024Wh, and 2048Wh capacities. Built with LFP cells and pure sine wave AC output, it provides reliable backup power with integrated emergency lighting for home and outdoor use.

Learn More

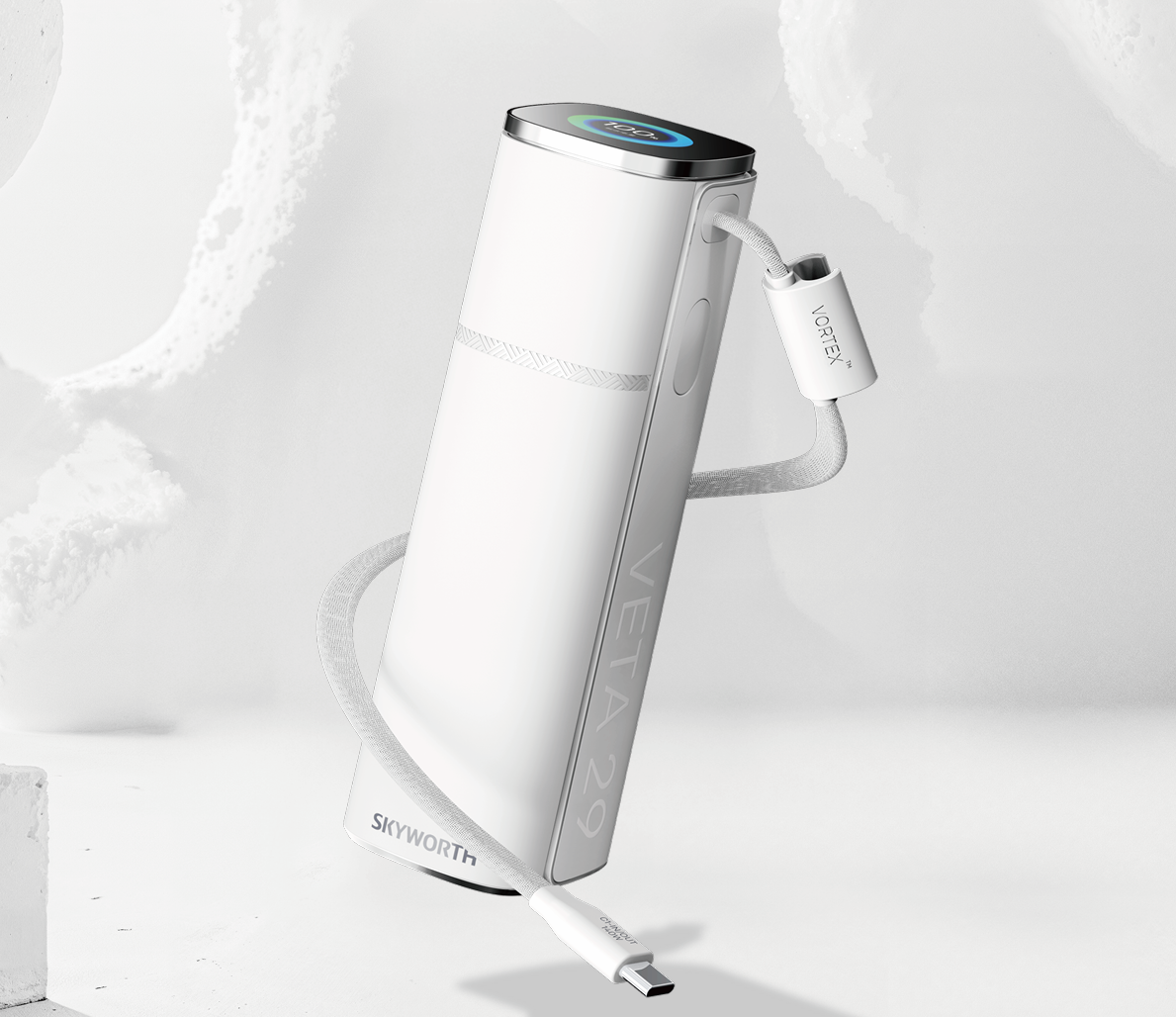

VETA29 Power Bank

A 15,000mAh mobile power bank delivering 205W of total output with a 29-minute full charge. Featuring a built-in 140W fast-charging cable, TFT color display, and airline-safe design, it meets the demands of modern mobile lifestyles.

Learn More

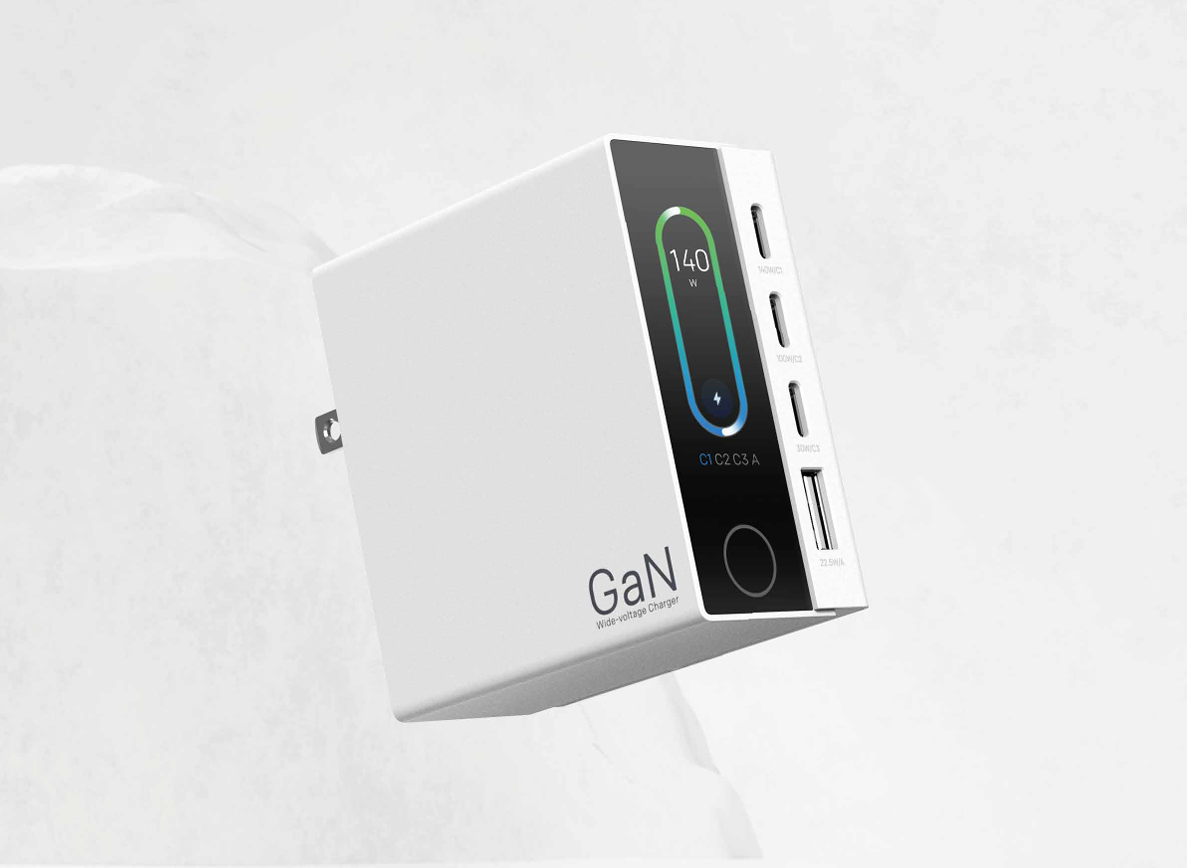

C-140 GaN Charger
